What is the installation direction of angular contact ball bearing 7314B?

release time：2024/9/30 17:03:18

Angular contact ball bearings are widely used in machine tool spindles and reducer equipment as a type of bearing with good precision and speed capability. Due to its special structural design, the direction must be paid attention to when installing angular contact ball bearings. Take the common 7314B bearings as an example. Many customers are not very clear about the correct installation direction.

What are the structural characteristics of contact ball bearing 7314B?

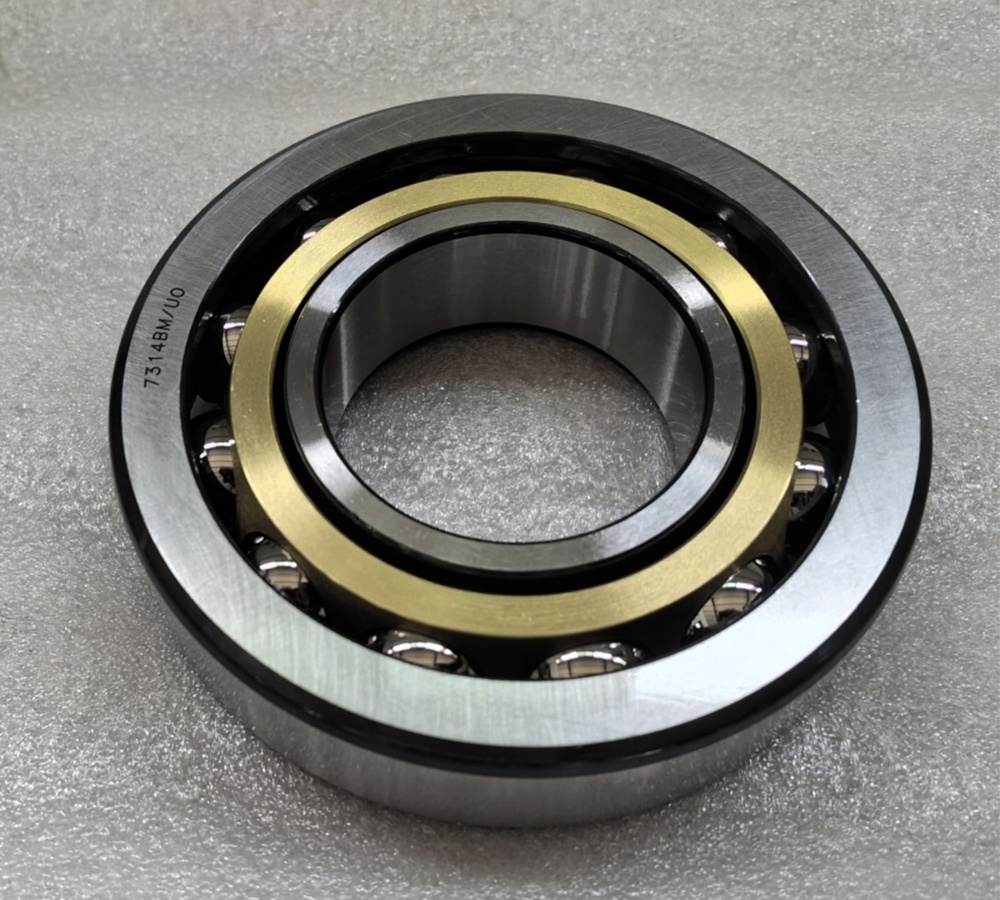

7314B bearings are single-row angular contact ball bearings. The contact angle design between the inner and outer rings of this type of bearing is 40°. It can withstand large axial loads, especially under high-speed operation. It can maintain high rigidity and better operation stability. It is widely used in high-precision processing equipment such as machine tools, milling machines, and drilling machines.

Angular contact ball bearing 7314B installation direction:

1. 7314B bearings have a single-row structure and can only withstand axial loads in one direction. When used alone, the direction of the axial load that the bearing bears in the equipment must be clearly defined. Then determine the bearing installation direction according to the load direction to ensure that the direction of the bearing's maximum load capacity is consistent with the load direction.

2. If the bearing needs to bear bidirectional axial load, two sets of 7314B angular contact ball bearings can be installed together to improve the bearing load bearing capacity. Common combinations include "face-to-face" (DF) installation and "back-to-back" (DB) installation:

1) DF pairing installation, the wide sides of the two bearings are opposite to each other, so that the bearings can bear bidirectional axial loads. In this way, the load capacity is mainly concentrated in the center of the bearing, which is suitable for bearing smaller overturning moments.

2) DB pairing installation, this installation method is to face the narrow sides of the bearings, which can effectively disperse the axial load and has good overturning rigidity. It is suitable for use in large overturning moments or long axis support structures.

The installation direction of the 7314B bearing must be combined with the actual use. If the installation direction of the 7314B bearing is incorrect, the fragile side of the bearing bears the axial load and cannot function normally, resulting in problems such as reduced accuracy and increased vibration during the operation of the equipment. In severe cases, it will affect the entire processing process and have an adverse effect on product quality.
