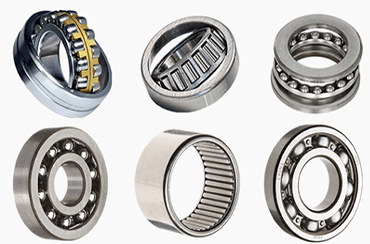

What are the types of bearings

release time:2018/10/16 12:49:26




  1. 1. Deep groove ball bearing: It is simple in structure and easy to use. It is the most widely used type. These bearings have a small friction factor and a high limit speed.

  2.

  3. 2. Self-aligning ball bearings: mainly bearing radial loads, and can withstand a small amount of axial load while receiving radial loads.

  4.

  5. 3.  Angular contact ball bearings: The limit speed is higher and increases as the contact angle increases.

  6. 4. Cylindrical roller bearings: a generally radial load, only a single inner bearing outer rings with ribs can withstand steady axial load smaller or larger intermittent axial load.

  7.

  8. 5. Thrust ball bearings : Thrust ball bearing cannot limit the warp direction of the shaft, and the limit speed is very low. One-way thrust ball bearings can limit the axial displacement of the shaft and the housing in one direction, and the two-way

bearing can limit the axial displacement in both directions.

  1.

  2. 6. Thrust roller bearings : Thrust spherical roller bearings are used to support axial load-based shafts . Warp joint loads, but warp loads must not exceed 55% of axial loads.

  3.

  4. 7. Tapered roller bearings : Tapered roller bearings are mainly suitable for bearing radial and axial combined loads with radial loads, while large taper tapered roller bearings can be used to withstand axial loads. To the joint load.
